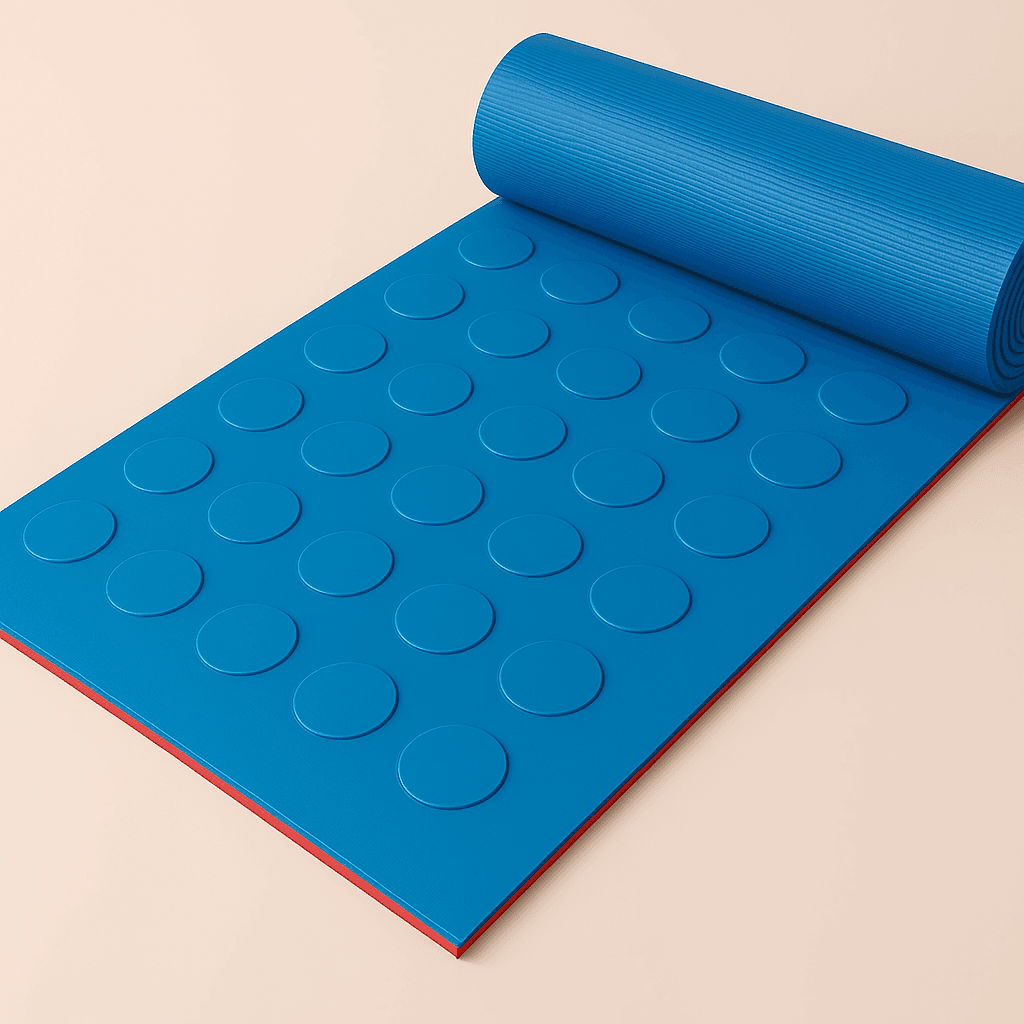

Image 1 of 4: Bi-Color dual-layer insulating mat — complete product view
Bi-Color Insulating Mats
Dual-layer electrical insulating mats with contrasting colour layers for visible identification of the surface construction and safety area. Manufactured for IS 15652:2006 requirements under BIS Licence CM/L:8800129617, available in Class A, B and C configurations.
Product assurance & compliance
BCIM Overview
A sophisticated two-tone colour scheme not only enhances visual appeal but also serves as a clear indicator of safety boundaries. The contrasting colours make hazard zones and restricted areas immediately visible, supporting safe navigation around electrical installations. Dielectric strength, anti-skid embossing and chemical resistance match the standard insulating mat range.
- Dual-tone colour scheme enhances visual appeal and serves as a clear indicator of safety boundaries
- High dielectric strength maintained around high-voltage equipment
- Anti-skid embossed surface provides secure footing in demanding environments
- Advanced elastomer compound resists moisture, oil and chemicals
Where It's Used
Bi-Color Insulating Mats is designed for the following installed environments and use cases.
Need a custom configuration for your specific environment?
Contact our engineering team to discuss tailored solutions for your installation requirements.
Specifications
Detailed technical specifications for each class and variant. All values tested per IS 15652:2006 standards.
Material Properties & Dimensions
Material Properties
- Design FeatureDual-tone colour scheme — serves as a clear indicator of safety boundaries
- Material CompositionElastomer free from any insertion — typically a combination of PVC and synthetic rubber polymers
- Anti-skid DesignCoin, Dot, Hexa
- Tensile Strength (T.S.)15 N/mm² (min.)
- Elongation at Break (E.B.)250% (min.)
- Leakage Current10 mA (max.)
- Insulation Resistance with Water100,000 MΩ (min.) when tested at 500 V
- Flame RetardanceExtinguishes within 5 seconds (max.)
- Ageing Properties at 70 ± 1 °C for 168 hoursT.S. and E.B. not less than 75% of original value
- Acid, Alkali and Oil ResistanceT.S. and E.B. not less than 80% of original value
- Working Temperature−10 °C to 55 °C
Dimensions
- Standard Size1.0 m wide × 10.0 m or 20 m long, in 2.0 mm, 2.5 mm and 3.0 mm
- Custom Size1.0 m wide × length as per customer requirement
- Standard ColourBlack and blue, without metallic derivatives
- Fixing at SiteSite fixing undertaken along with materials, subject to minimum criteria
Available Colours
Surface Patterns
- Design FeatureDual-tone colour scheme — serves as a clear indicator of safety boundaries
- Material CompositionElastomer free from any insertion — typically a combination of PVC and synthetic rubber polymers
- Anti-skid DesignCoin, Dot, Hexa
- Tensile Strength (T.S.)15 N/mm² (min.)
- Elongation at Break (E.B.)250% (min.)
- Leakage Current10 mA (max.)
- Insulation Resistance with Water100,000 MΩ (min.) when tested at 500 V
- Flame RetardanceExtinguishes within 5 seconds (max.)
- Ageing Properties at 70 ± 1 °C for 168 hoursT.S. and E.B. not less than 75% of original value
- Acid, Alkali and Oil ResistanceT.S. and E.B. not less than 80% of original value
- Working Temperature−10 °C to 55 °C
Installation Guidelines
- Lay on a clean, dry floor as with standard insulating mats
- Cut to length from the 1.0 m wide roll
- Butt-join adjacent sections tightly with no gaps
- Inspect regularly for cuts, wear or embedded conductive debris
- Site fixing can be undertaken by Bharat Electrosafe along with the material, subject to minimum criteria

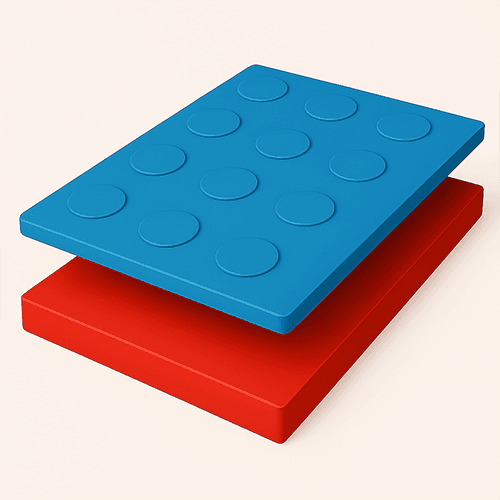

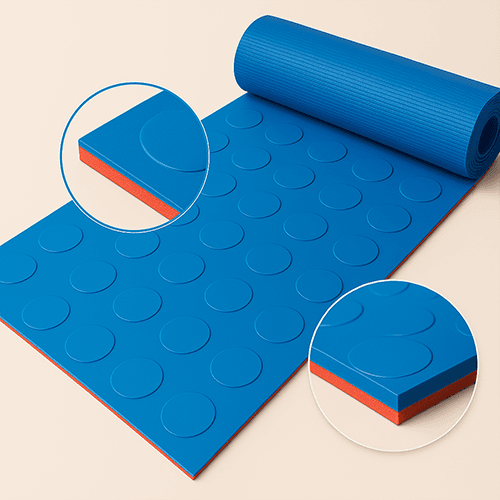

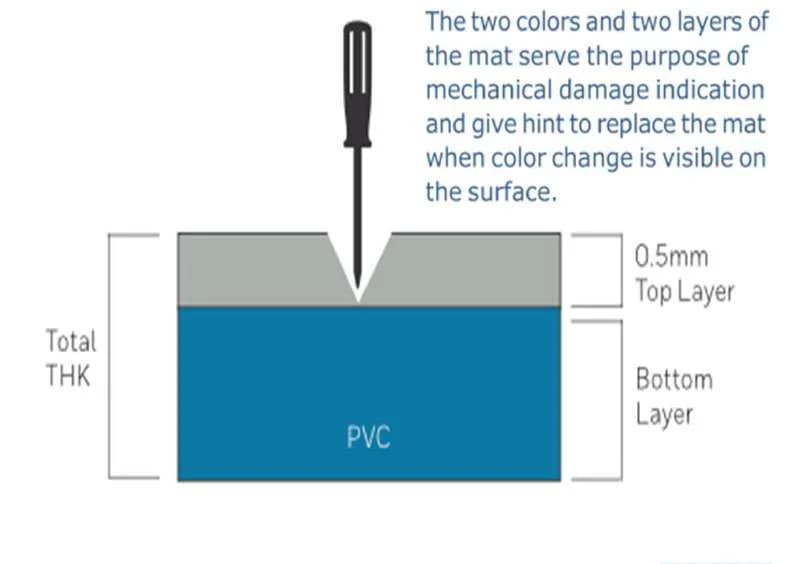

Dual-Layer Cross-Section
The Bi-Color mat features two contrasting elastomer layers for immediate visual identification of wear-through, enhancing safety inspection in switchrooms.
Documentation
Product datasheets, certificates, test reports, and installation guides.
PDFERDA test report — 2.5 mm insulating mat
PDFISO 9001:2015 — Quality Management System
BIS Licence CM/L:8800129617 — IS 15652:2006
Product datasheet — available on request
Questions about BCIM
- What standards do Bi-Color Insulating Mats comply with?
- Our electrical insulating mats are manufactured to IS 15652:2006 under BIS Licence CM/L:8800129617. Available supporting documents include ERDA and NTH test reports. Request the current document set for the exact product and thickness required.
- What is the purpose of the dual-tone design?
- The dual-tone colour scheme serves as a clear indicator of safety boundaries in the workspace. The contrasting colours make hazard zones and restricted areas immediately visible, supporting safe navigation around electrical installations.
- What dimensions are available?
- Standard and custom dimensions are available. Contact our team with your specific requirements for a tailored solution.
- How do I request a quotation?
- Use our contact form, call our sales team, or send a WhatsApp message with your requirements including product, dimensions, quantity and delivery location.
- What is the lead time?
- Lead time varies based on product and quantity. Standard products ship faster; custom dimensions require additional production time. Timelines are confirmed with each quotation.
