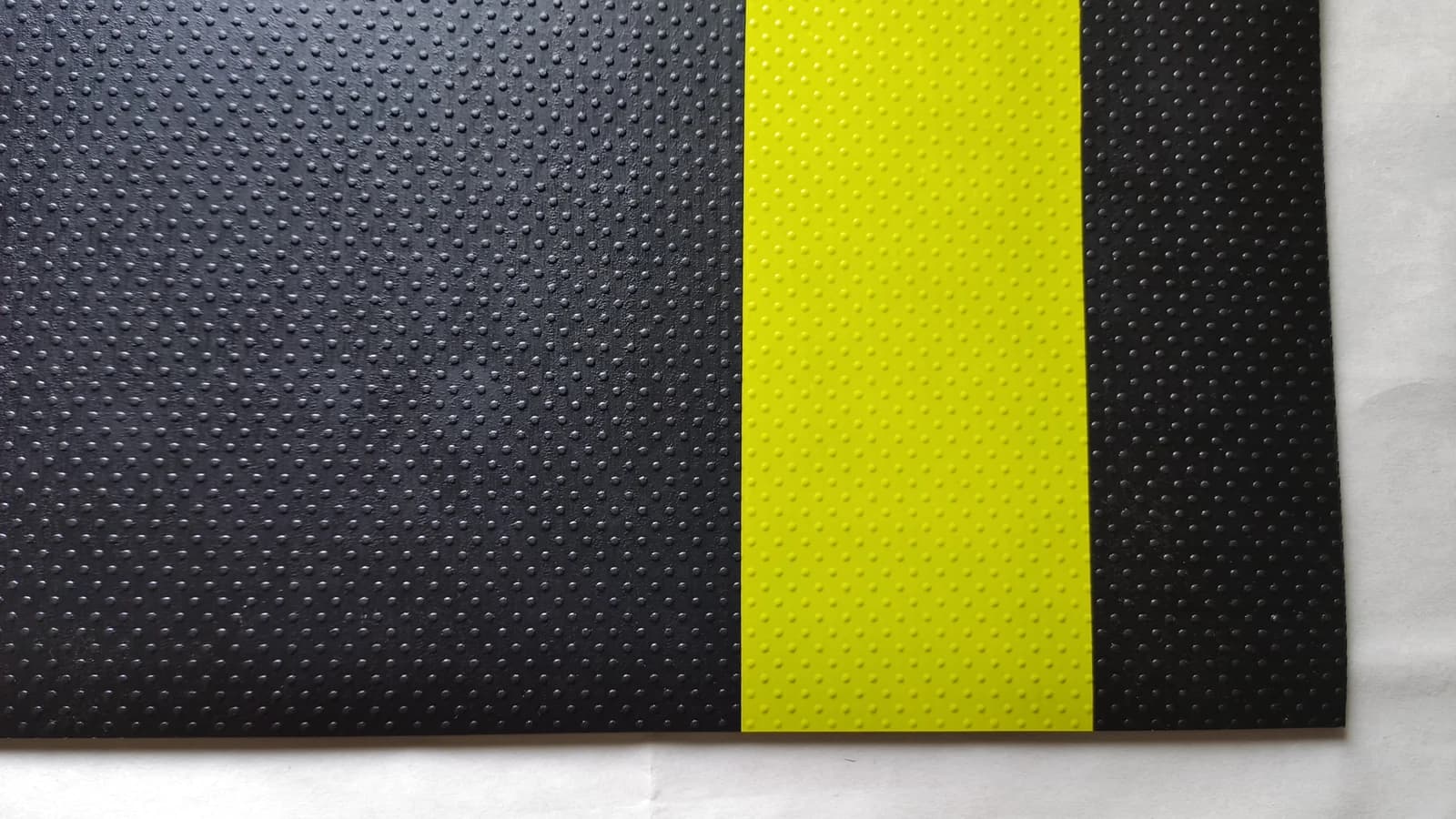

Image 1 of 4: Coloured strip insulating mat with yellow safety boundary — complete product view
Coloured Strip Insulating Mats
Electrical insulating mats with a high-visibility coloured strip for clearer marking of operating zones, walkways and safety boundaries around electrical installations. Manufactured for IS 15652:2006 requirements under BIS Licence CM/L:8800129617.
Product assurance & compliance
CSIM Overview

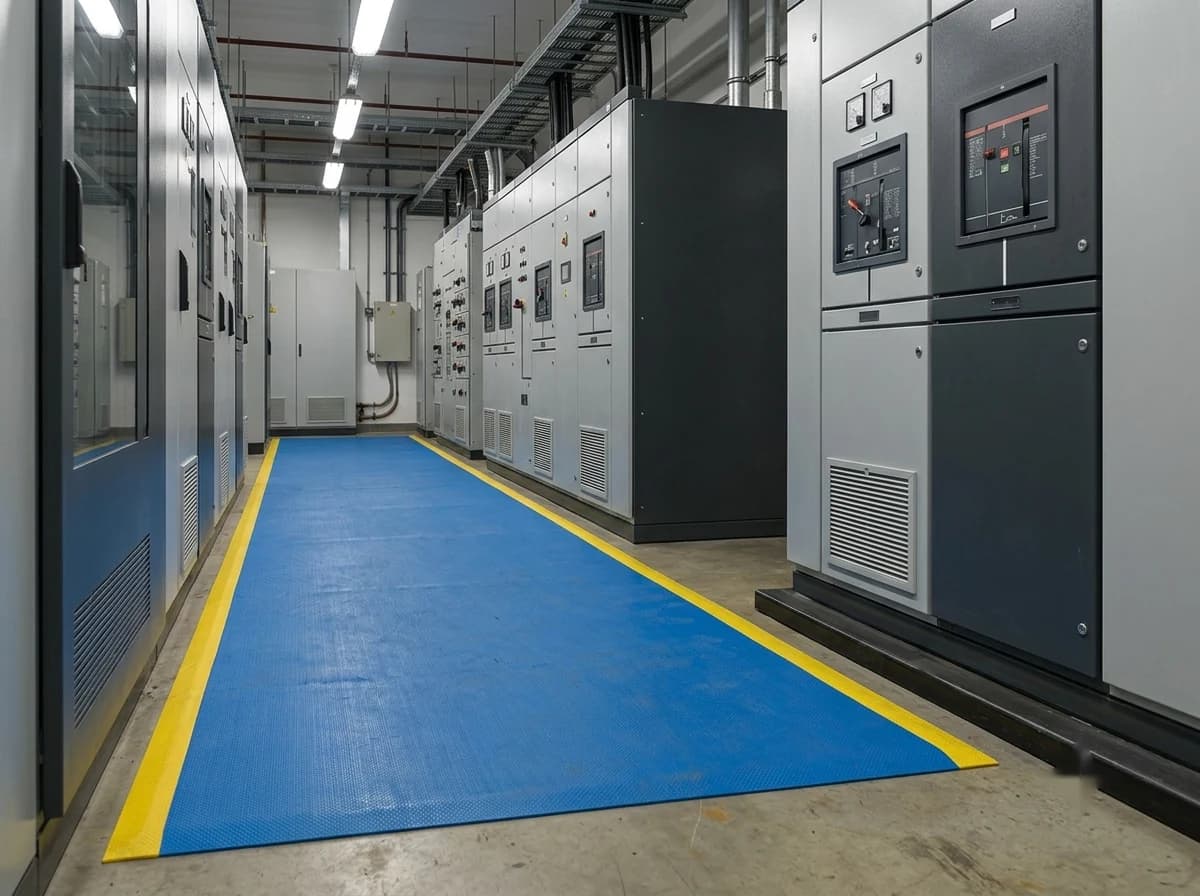

A vivid strip provides immediate visual cues for navigating safely around electrical panels and machinery. The strip is built into the same elastomer body as the standard mat, so demarcation costs nothing in insulation performance: anti-slip texturing keeps footing stable in high-traffic areas, and the compound resists moisture, oil and corrosive chemicals. Thickness is selected to match the working voltage, exactly as for the standard range.
- High-visibility markings give immediate visual cues around panels and machinery
- Thickness selected to match the voltage application — 2.0 mm, 2.5 mm or 3.0 mm
- Anti-slip texture holds footing in high-traffic industrial areas
- Elastomeric compound resists moisture, oil and corrosive chemicals
- Flame retardant, adding a further layer of protection
Where It's Used
Coloured Strip Insulating Mats is designed for the following installed environments and use cases.
Need a custom configuration for your specific environment?
Contact our engineering team to discuss tailored solutions for your installation requirements.
Specifications
Detailed technical specifications for each class and variant. All values tested per IS 15652:2006 standards.
Material Properties & Dimensions
Material Properties
- Material CompositionElastomer free from any insertion — typically a combination of PVC and synthetic rubber polymers
- Anti-skid DesignCoin, Dot, Hexa
- Tensile Strength (T.S.)15 N/mm² (min.)
- Elongation at Break (E.B.)250% (min.)
- Leakage Current10 mA (max.)
- Insulation Resistance with Water100,000 MΩ (min.) when tested at 500 V
- Flame RetardanceExtinguishes within 5 seconds (max.)
- Ageing Properties at 70 ± 1 °C for 168 hoursT.S. and E.B. not less than 75% of original value
- Acid, Alkali and Oil ResistanceT.S. and E.B. not less than 80% of original value
- Working Temperature−10 °C to 55 °C
Dimensions
- Standard Size1.0 m wide × 10.0 m or 20 m long, in 2.0 mm, 2.5 mm and 3.0 mm
- Custom Size1.0 m wide × length as per customer requirement
- Standard ColourBlack and blue, without metallic derivatives
- Fixing at SiteSite fixing undertaken along with materials, subject to minimum criteria
Available Colours
Surface Patterns
- Material CompositionElastomer free from any insertion — typically a combination of PVC and synthetic rubber polymers
- Anti-skid DesignCoin, Dot, Hexa
- Tensile Strength (T.S.)15 N/mm² (min.)
- Elongation at Break (E.B.)250% (min.)
- Leakage Current10 mA (max.)
- Insulation Resistance with Water100,000 MΩ (min.) when tested at 500 V
- Flame RetardanceExtinguishes within 5 seconds (max.)
- Ageing Properties at 70 ± 1 °C for 168 hoursT.S. and E.B. not less than 75% of original value
- Acid, Alkali and Oil ResistanceT.S. and E.B. not less than 80% of original value
- Working Temperature−10 °C to 55 °C
Installation Guidelines
- Plan the strip layout so markings follow the hazard-zone boundary or walkway edge
- Cut to length from the 1.0 m wide roll, keeping the strip continuous along the run
- Clean and dry the floor before laying
- Butt-join adjacent sections so the strip line reads unbroken
- Site fixing can be undertaken by Bharat Electrosafe along with the material, subject to minimum criteria
- Inspect regularly for wear and for loss of strip visibility
Documentation
Product datasheets, certificates, test reports, and installation guides.
PDFERDA test report — 2.5 mm insulating mat
PDFISO 9001:2015 — Quality Management System
BIS Licence CM/L:8800129617 — IS 15652:2006
Product datasheet — available on request
Questions about CSIM
- What standards do Coloured Strip Insulating Mats comply with?
- Our electrical insulating mats are manufactured to IS 15652:2006 under BIS Licence CM/L:8800129617. Available supporting documents include ERDA and NTH test reports. Request the current document set for the exact product and thickness required.
- What colour options are available for the strip configuration?

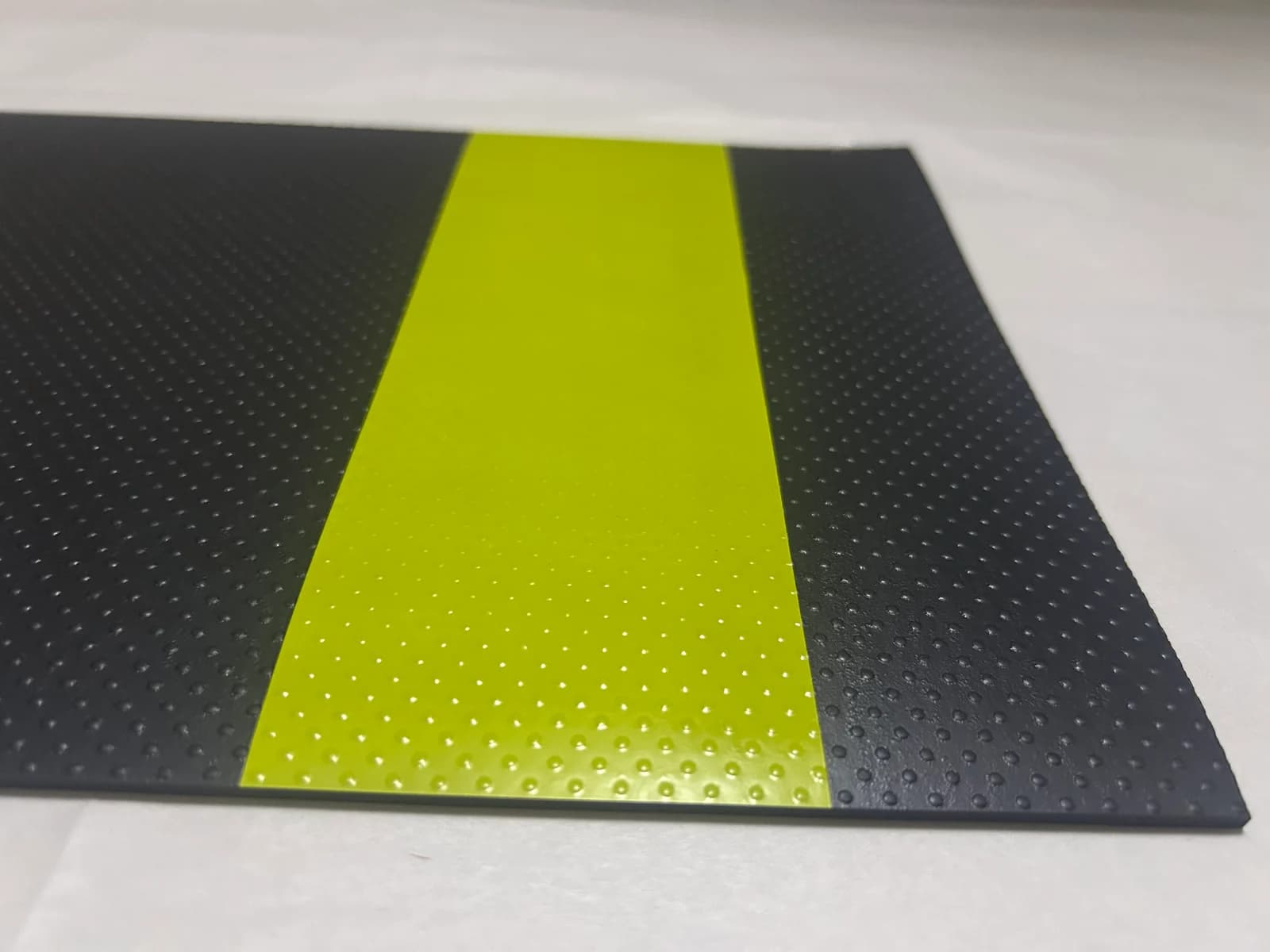

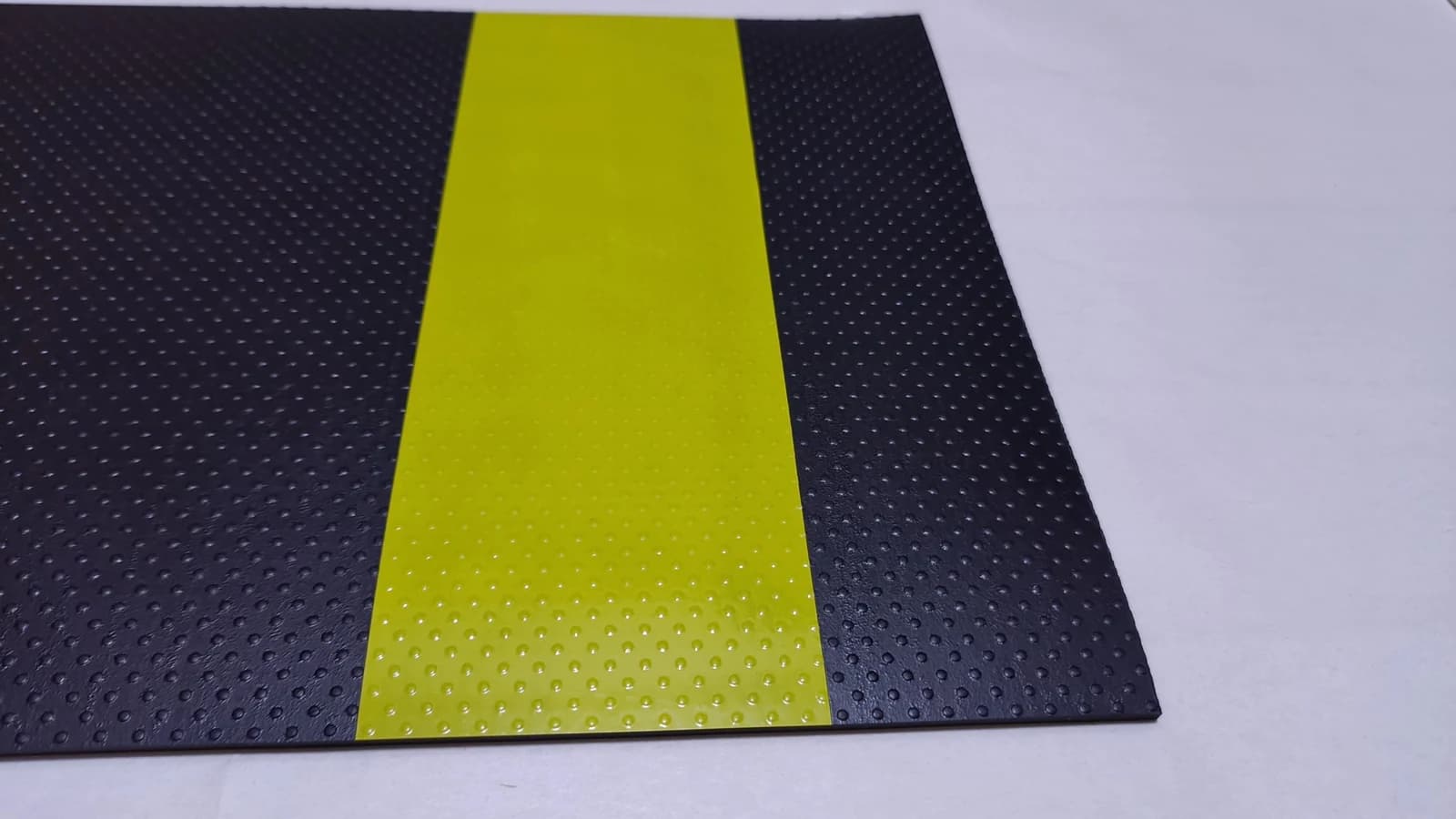

- The standard strip configuration uses a vivid yellow marking on a black insulating base, providing clear visual cues around electrical panels and machinery. All variants retain the same IS 15652:2006 insulation performance.
- What dimensions are available?
- Standard and custom dimensions are available. Contact our team with your specific requirements for a tailored solution.
- How do I request a quotation?
- Use our contact form, call our sales team, or send a WhatsApp message with your requirements including product, dimensions, quantity and delivery location.
- What is the lead time?
- Lead time varies based on product and quantity. Standard products ship faster; custom dimensions require additional production time. Timelines are confirmed with each quotation.
