Auto-Glow / Reflective Band Insulating Mats
Auto-Glow / Reflective Band Insulating Mats - – Lighting the Way with Clarity
IS: 15652 : 2006 | CM/L:8800129617

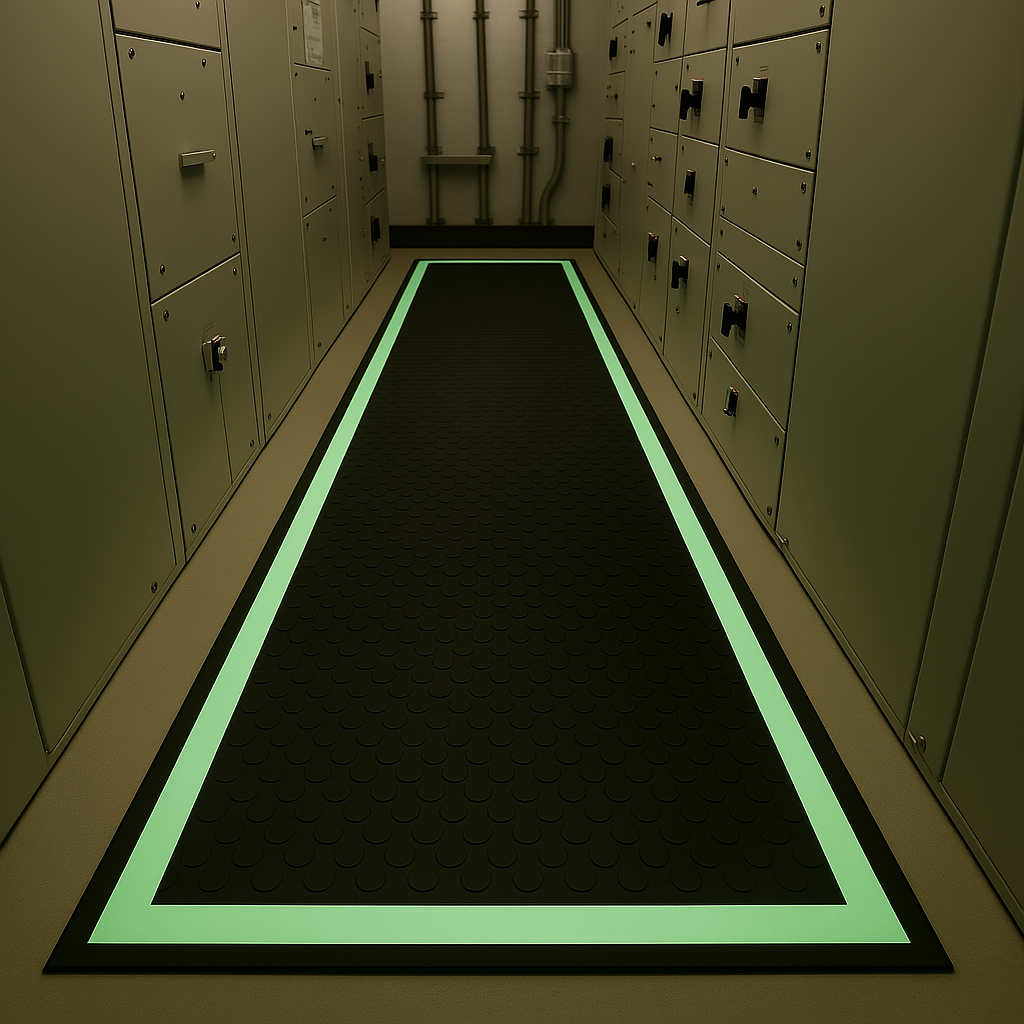

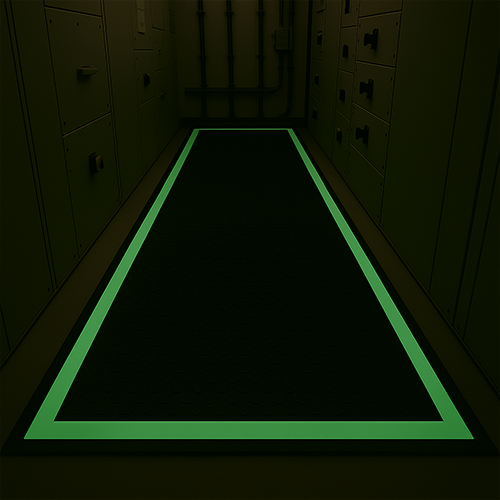

When the lights go out, safety should never fade. Our Auto-Glow Band Insulating Mats are designed to illuminate your pathways in emergency situations, ensuring that even at night your workspace remain under safety.

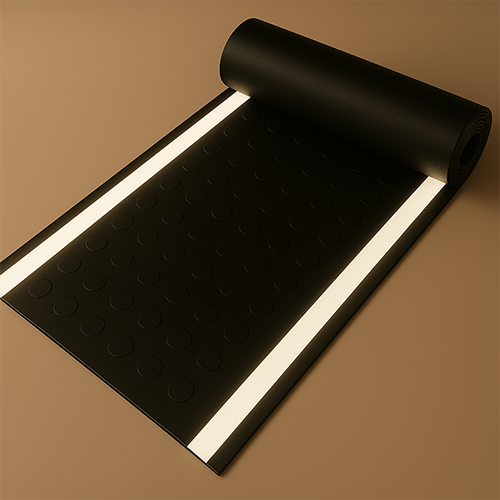

On the other hand, Our Reflective-Band Insulating Mats integrate high-visibility reflective strips into a robust insulating platform, offering both clear navigation and unmatched electrical safety. Innovative Features
Key Features
- Luminous Glow: A specially engineered glow-in-the-dark band lights up your environment, guiding movement and highlighting hazard zones.
- Reflective Precision: A dedicated reflective band ensures your work areas are clearly outlined, even in low-light conditions.
- Uncompromised Insulation: Retains high dielectric strength even with added luminous properties, ensuring continuous protection against electrical risks.
- Enhanced Grip: The anti-slip textured patterns provide a secure base on any surface, making navigation safe and simple.
- Robust Performance: Developed to withstand rigorous industrial conditions—including moisture and chemical exposure—without losing its glow.
Our Promise Reliability is at the heart of our design. With our Auto-Glow Band Insulating Mats, you ensure that safety is never left in the dark, no matter the situation. Let every step be illuminated by confidence and innovation. Safety should be seen as well as felt. Our Reflector-Band Insulating Mats stand as clear markers of protection and guidance, ensuring that every step in your workspace is both visible and secure.
Product Specifications
| Product Code | Class | Thickness | Working Voltage | AC Proof Voltage | Di-electric Strength |
|---|---|---|---|---|---|
| BES1001 | A | 2.0 mm | 3.3 KV | 10.0 KV | 30.0 KV |
| BES1002 | B | 2.5 mm | 11.0 KV | 22.0 KV | 45.0 KV |
| BES1003 | C | 3.0 mm | 33.0 KV | 36.0 KV | 65.0 KV |
Material Properties
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. Typically, a combination of PVC and synthetic rubber polymers. |
| Antiskid Design | Coin, Dot, Hexa |
| Tensile Strength (T.S.) | 15N/mm² (min.) |
| Elongation at Break (E.B.) | 250% (min.) |
| Leakage Current | 10 mA (max.) |
| Insulation Resistance with Water | 100,000 MΩ (min.) when tested at 500 V |
| Flame Retardance | Extinguishes within 5 secs (max.) |
| Ageing Properties at 70±1°C for 168 hours | T.S. & E.B. not less than 75% of original value. |
| Acid, Alkali & Oil Resistance | T.S. & E.B. not less than 80% of original value. |
| Working Temperature | -10°C to 55°C |
Dimensions & Installation
| Standard Size | 1.0 Mtr. Wide x 10.0 or 20 Mtr. Long for 2.0 mm , 2.5 mm & 3.0mm. |
|---|---|
| Custom Size | 1.0 Mtr. Wide x Length as per Customer Requirement. |
| Standard Colour | Black & Blue without Metallic Derivatives. |
| Fixing at Site | We undertake site fixing along with materials subject to min. criteria. |
