Bi-Color Insulating Mats

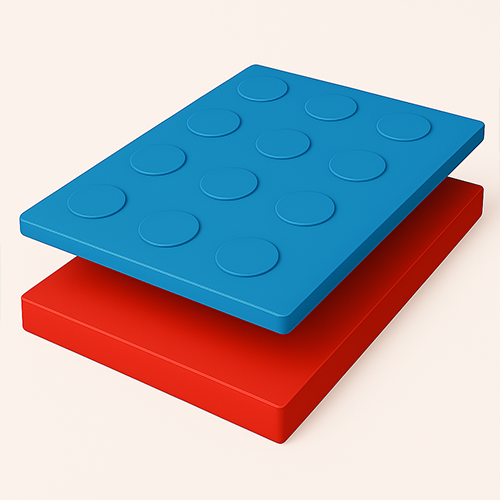

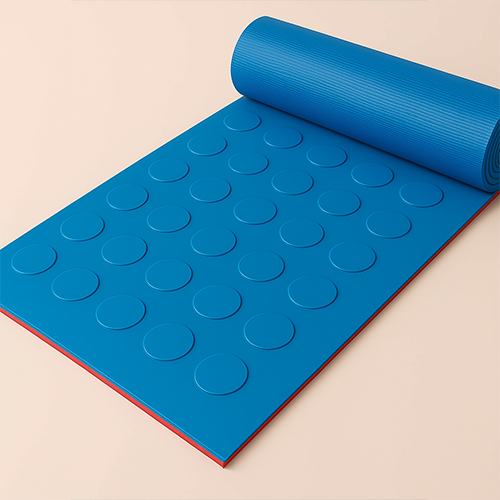

Bi-Color Insulating Mats – Dual-Tone Excellence
IS: 15652 : 2006 | CM/L:8800129617
Where functionality meets aesthetic innovation, our Bi-Color Insulating Mats redefine industrial safety with a striking dual-tone design. These mats deliver premium insulation while adding an element of visual differentiation that underscores their superior performance.
Innovative Features

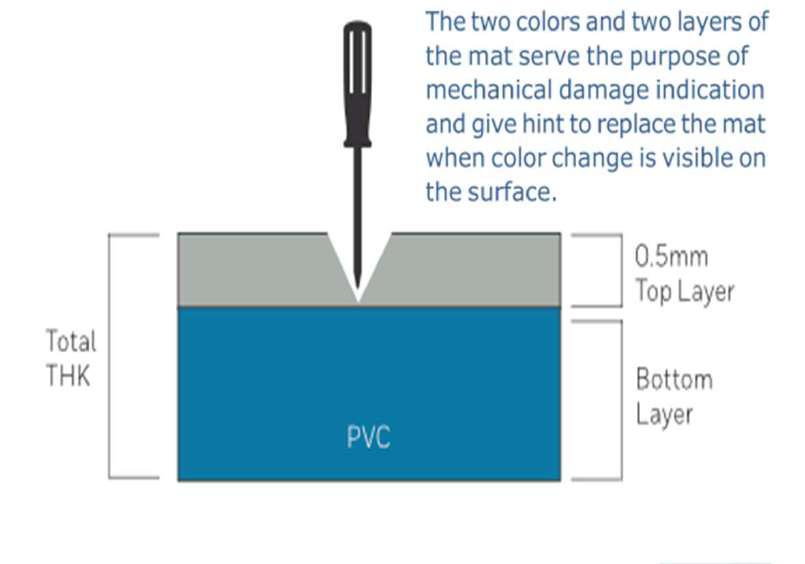

- Dual-Tone Design: A sophisticated two-tone color scheme not only enhances visual appeal but also serves as a clear indicator of safety boundaries.
- Exceptional Insulation: Maintains high dielectric strength to ensure robust protection around high-voltage equipment.
- Enhanced Grip: Engineered with anti-skid embossed surfaces that provide secure footing in challenging environments.
- Durable and Resilient: Constructed from advanced elastomer compounds, these mats are built to resist adverse conditions such as moisture, oil, and chemicals.
- Tailored for Versatility: Perfect for both industrial and commercial settings where style and safety converge.
Our Promise Safety can be smart and stylish. With our Bi-Color Insulating Mats, you receive a technically advanced product that not only meets the highest safety standards but also enhances your workspace’s visual identity. Experience a new standard where protection and aesthetics work in unison.
Product Specifications
| Product Code | Class | Thickness | Working Voltage | AC Proof Voltage | Di-electric Strength |
|---|---|---|---|---|---|
| BES1001 | A | 2.0 mm | 3.3 KV | 10.0 KV | 30.0 KV |
| BES1002 | B | 2.5 mm | 11.0 KV | 22.0 KV | 45.0 KV |
| BES1003 | C | 3.0 mm | 33.0 KV | 36.0 KV | 65.0 KV |
Material Properties
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. Typically, a combination of PVC and synthetic rubber polymers. |

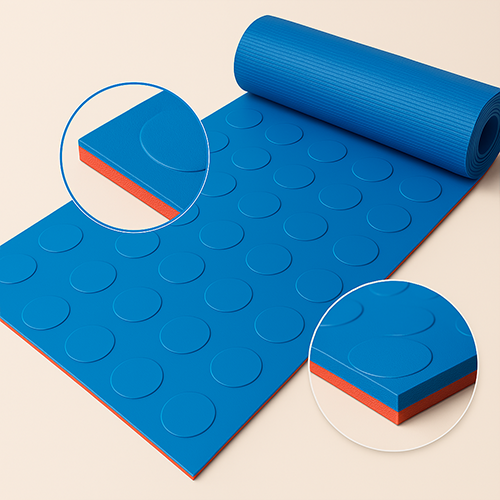

| Antiskid Design | Coin, Dot, Hexa |
| Tensile Strength (T.S.) | 15N/mm² (min.) |
| Elongation at Break (E.B.) | 250% (min.) |
| Leakage Current | 10 mA (max.) |
| Insulation Resistance with Water | 100,000 MΩ (min.) when tested at 500 V |
| Flame Retardance | Extinguishes within 5 secs (max.) |
| Ageing Properties at 70±1°C for 168 hours | T.S. & E.B. not less than 75% of original value. |
| Acid, Alkali & Oil Resistance | T.S. & E.B. not less than 80% of original value. |
| Working Temperature | -10°C to 55°C |
Dimensions & Installation
| Standard Size | 1.0 Mtr. Wide x 10.0 or 20 Mtr. Long for 2.0 mm , 2.5 mm & 3.0mm. |
|---|---|
| Custom Size | 1.0 Mtr. Wide x Length as per Customer Requirement. |
| Standard Colour | Black & Blue without Metallic Derivatives. |
| Fixing at Site | We undertake site fixing along with materials subject to min. criteria. |
