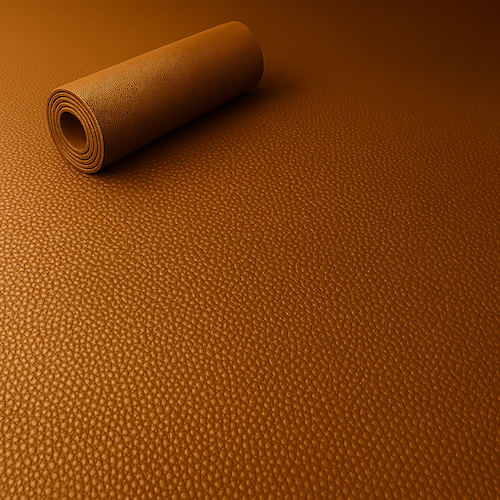

Electrical Insulating Mats
Electrical Insulating Mats – Pioneering Safety
IS: 15652 : 2006 | CM/L:8800129617
Electrical Insulating Mats – Unmatched Protection, Certified Excellence
Engineered to meet IS 15652:2006 standards, our Electrical Insulating Mats redefine safety in high-voltage environments. Whether you're working around intricate control panels or heavy-duty electrical equipment, our mats ensure superior insulation—providing a reliable barrier against electrical hazards.
Safety You Can Stand On
Designed for AC & DC control panels, our premium-grade insulating mats deliver exceptional protection while adhering to the highest industry benchmarks. Backed by BIS & CPRI/ERDA approvals, each mat features an anti-skid surface for maximum grip and stability. Plus, with ISI marking on every meter, quality assurance comes standard.
Upgrade your safety standards with our elite range—precision-engineered for professionals who refuse to compromise.
Innovative Features
- High Dielectric Strength: Engineered to prevent current leakage and provide robust electrical isolation.
- Versatile Thickness Options: Offered in 2 mm, 2.5 mm, and 3 mm to suit various voltage requirements.
- Anti-Skid Surfaces: Featuring ribbed, checkered, or embossed patterns, our mats ensure stability and prevent slips.
- Durable Elastomeric Composition: Created with premium synthetic rubber that resists water, oil, and chemical exposure.
- Flame-Retardant: Designed to minimize fire hazards and maintain safety under extreme conditions.
Our Promise From the production line to your workspace, every element is crafted with precision and care. Choose our Electrical Insulating Mats and experience a foundation of safety that empowers you to work confidently in any high-risk environment.
Product Specifications
| Product Code | Class | Thickness | Working Voltage | AC Proof Voltage | Di-electric Strength |
|---|---|---|---|---|---|
| BES1001 | A | 2.0 mm | 3.3 KV | 10.0 KV | 30.0 KV |
| BES1002 | B | 2.5 mm | 11.0 KV | 22.0 KV | 45.0 KV |
| BES1003 | C | 3.0 mm | 33.0 KV | 36.0 KV | 65.0 KV |
Material Properties
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. Typically, a combination of PVC and synthetic rubber polymers. |

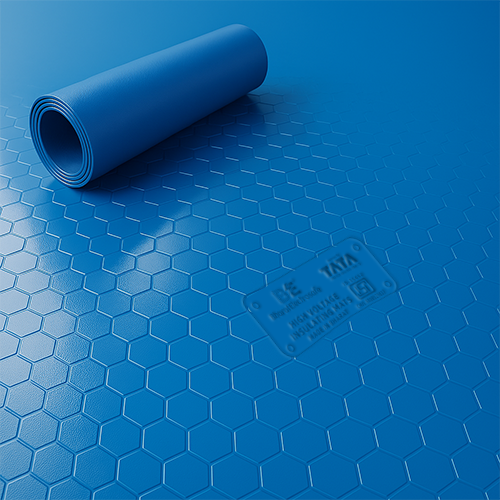

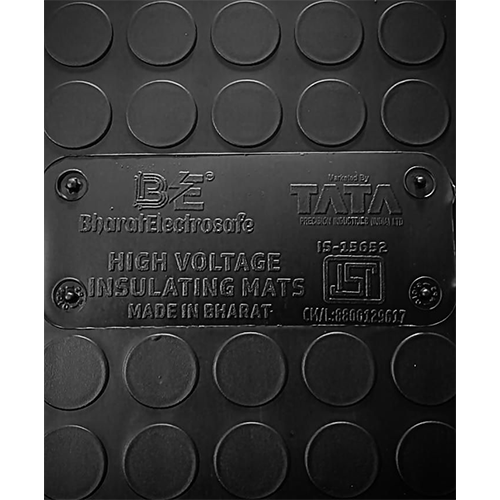

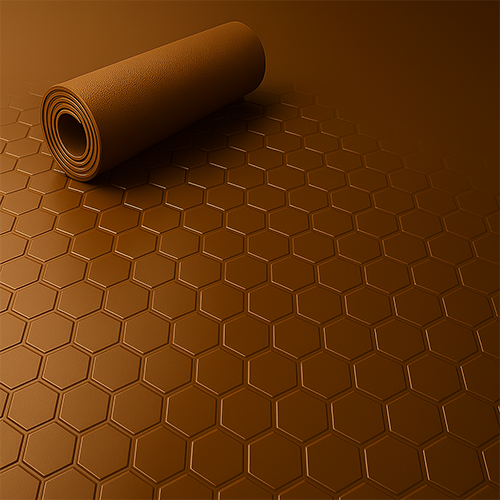

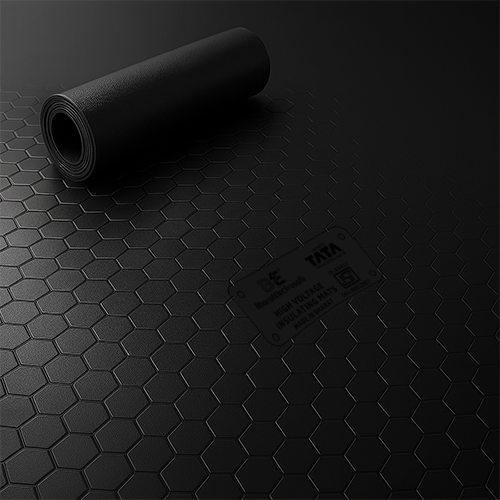

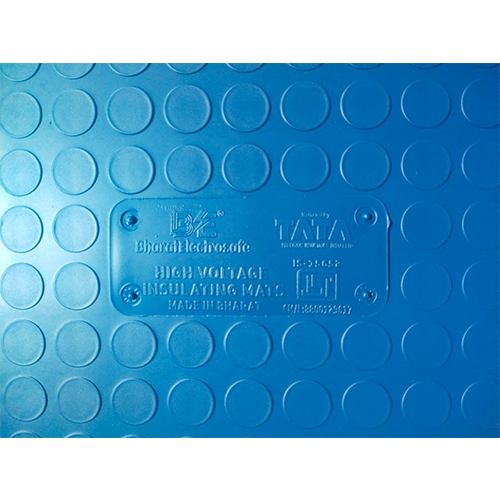

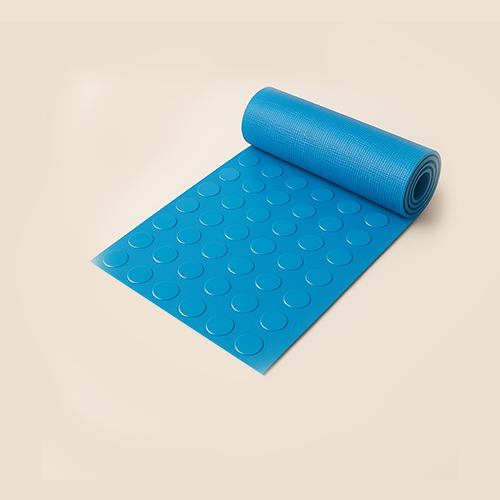

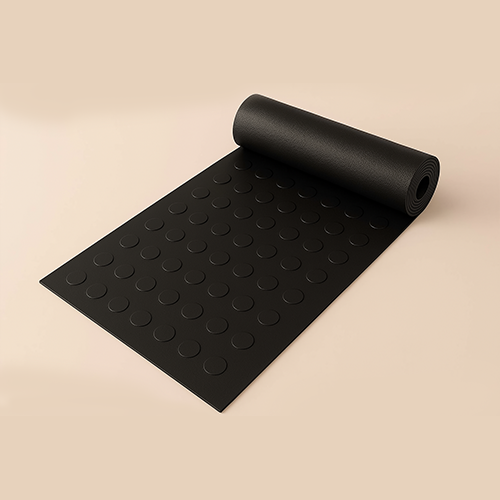

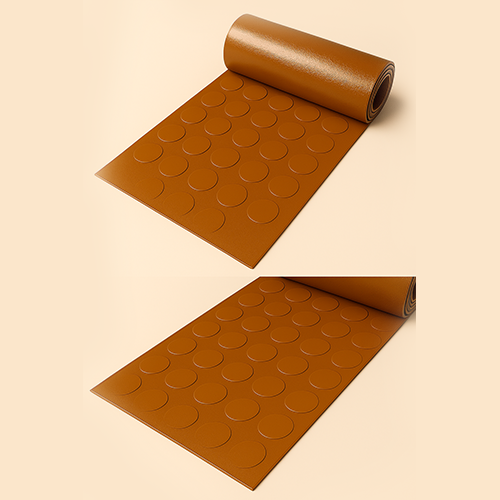

| Antiskid Design | Coin, Dot, Hexa |
| Tensile Strength (T.S.) | 15N/mm² (min.) |
| Elongation at Break (E.B.) | 250% (min.) |
| Leakage Current | 10 mA (max.) |
| Insulation Resistance with Water | 100,000 MΩ (min.) when tested at 500 V |
| Flame Retardance | Extinguishes within 5 secs (max.) |
| Ageing Properties at 70±1°C for 168 hours | T.S. & E.B. not less than 75% of original value. |
| Acid, Alkali & Oil Resistance | T.S. & E.B. not less than 80% of original value. |
| Working Temperature | -10°C to 55°C |
Dimensions & Installation
| Standard Size | 1.0 Mtr. Wide x 10.0 or 20 Mtr. Long for 2.0 mm , 2.5 mm & 3.0mm. |
|---|---|
| Custom Size | 1.0 Mtr. Wide x Length as per Customer Requirement. |
| Standard Colour | Black & Blue without Metallic Derivatives. |
| Fixing at Site | We undertake site fixing along with materials subject to min. criteria. |
