Coloured Strip Insulating Mats
Coloured Strip Insulating Mats– Guiding Safety with Precision
IS: 15652 : 2006 | CM/L:8800129617

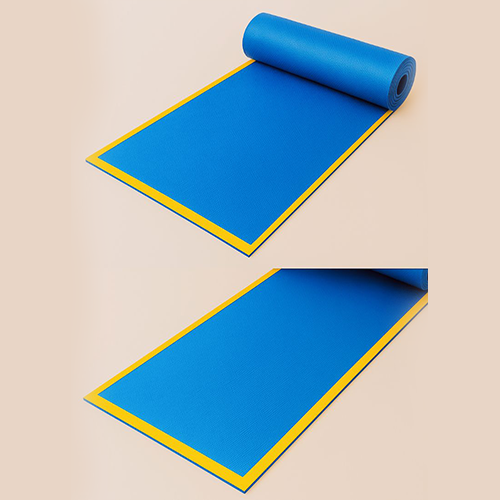

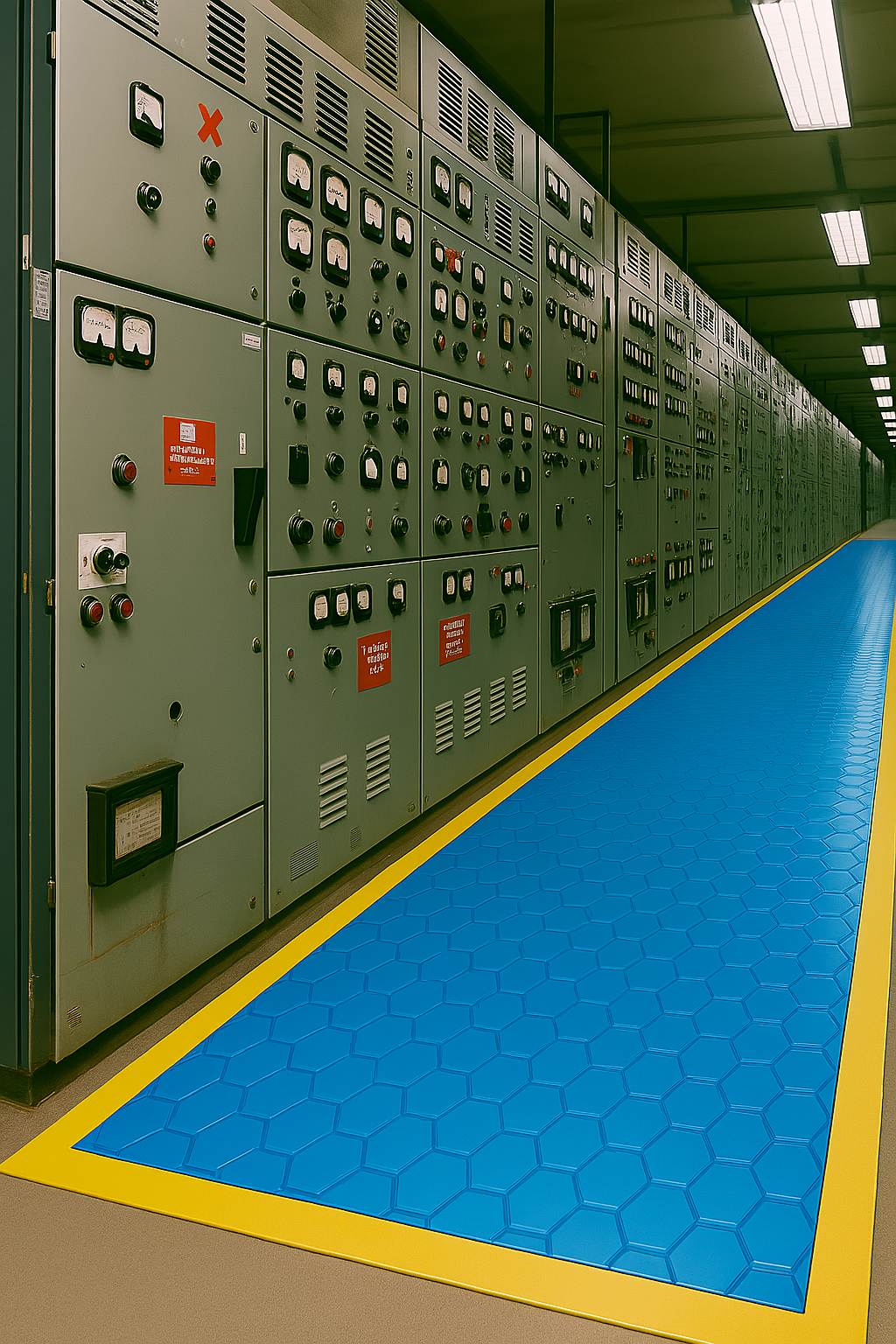

Clear demarcation of hazardous zones is essential in preventing accidents. Our Yellow Strip Insulating Mats are engineered with bold yellow markings that serve as visual guides, creating safe pathways around high-risk electrical installations.
Innovative Features
- High-Visibility Markings: A vivid yellow strip provides immediate visual cues to safely navigate around electrical panels and machinery.
- Customizable Thickness: Available in multiple thickness levels tailored to different voltage applications for optimal performance.
- Robust Traction: Anti-slip textures ensure stable footing, even in high-traffic industrial areas.
- Engineered Resilience: Made from high-quality elastomeric compounds that resist moisture, oil, and corrosive chemicals.
- Fire and Heat Resistance: Designed to be flame-retardant, adding another critical layer of protection.
Our Promise In every workspace, clarity saves lives. With our coloured Strip Insulating Mats, safety isn’t just an afterthought—it’s embedded into every step, guiding your team through dangerous environments with precision and reliability.
Product Specifications
| Product Code | Class | Thickness | Working Voltage | AC Proof Voltage | Di-electric Strength |
|---|---|---|---|---|---|
| BES1001 | A | 2.0 mm | 3.3 KV | 10.0 KV | 30.0 KV |
| BES1002 | B | 2.5 mm | 11.0 KV | 22.0 KV | 45.0 KV |
| BES1003 | C | 3.0 mm | 33.0 KV | 36.0 KV | 65.0 KV |
Material Properties
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. Typically, a combination of PVC and synthetic rubber polymers. |
| Antiskid Design | Coin, Dot, Hexa |
| Tensile Strength (T.S.) | 15N/mm² (min.) |
| Elongation at Break (E.B.) | 250% (min.) |
| Leakage Current | 10 mA (max.) |
| Insulation Resistance with Water | 100,000 MΩ (min.) when tested at 500 V |
| Flame Retardance | Extinguishes within 5 secs (max.) |
| Ageing Properties at 70±1°C for 168 hours | T.S. & E.B. not less than 75% of original value. |
| Acid, Alkali & Oil Resistance | T.S. & E.B. not less than 80% of original value. |
| Working Temperature | -10°C to 55°C |
Dimensions & Installation
| Standard Size | 1.0 Mtr. Wide x 10.0 or 20 Mtr. Long for 2.0 mm , 2.5 mm & 3.0mm. |
|---|---|
| Custom Size | 1.0 Mtr. Wide x Length as per Customer Requirement. |
| Standard Colour | Black & Blue without Metallic Derivatives. |
| Fixing at Site | We undertake site fixing along with materials subject to min. criteria. |
